AVI Felopaul

Recoder/Player for camera Basler et QuickCam

MINIMUM CONFIG :

Windows XP,VISTA, SEVEN, TEN (64b)
Frameworks .NET 4 ou >
Plateforme ASCOM 6.0
DirectX : DirectX

Download the MSI file and install it on your PC:
Avi_Felopaul.msi  (version du 1.00.25 du 02/05/18)


Download the SDK file Basler (even if you do not have a camera Basler):

Basler_SDK_x64.exe v5.0.5  (librairy for windows 64bits)

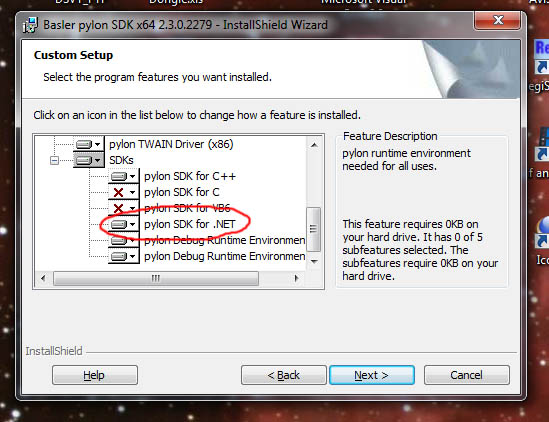

Important: you must select the option SDK -> SDK for pylon. NET




EDIT with Notepad the file "AVI_Felopaul.INI" to write your personal data.

for the Filter section :
filtre IR : AVI of 9 seconds; Exposure time of 10005 µs / Framme ; gain the 1005 ; filter N°1 in the FilterWheel

[FILTRE]
IR=9,10005,1005,1
RED=5,10001,1001,2
GREEN=6,10002,1002,3
BLUE=7,10003,1003,4
LIGHT=8,10004,1004,5
FILTERWHEEL=ASCOM.STARLIGHTXPRESS.FILTERWHEEL

[CAMERA]
TELESCOPE=MEADE 14
INSTRUMENT=BASLER ACE640
OBSERVER=FELOPAUL,BOURGON LAURENT
CAMERA_SERIE=21033550
SAVE_DIRECTORY=C:
TEMPS=8

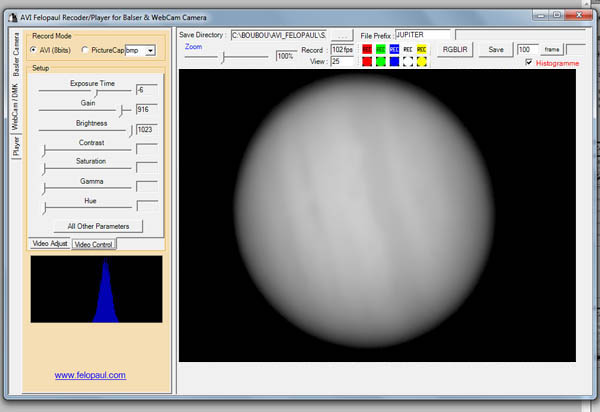

1st PAGE: Capture with the camera BALSER to AVI or SER (8bits, 12bits and 16bits)

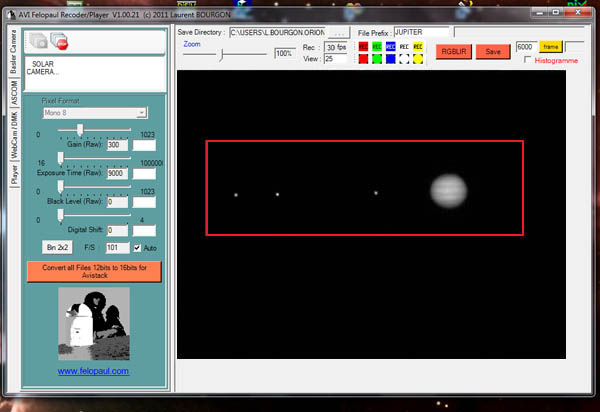

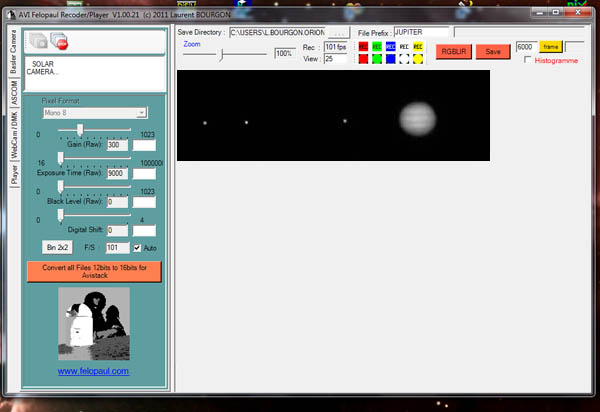

Ability to resize the picture (select the area with the mouse) to cancel clic witout moving

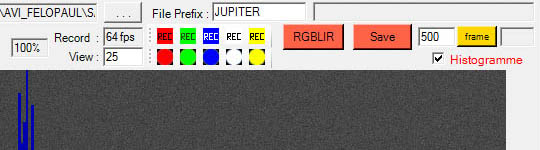

For the filters, you have to Save for each one the Exposure Time, Gain .. clic on "REC" button

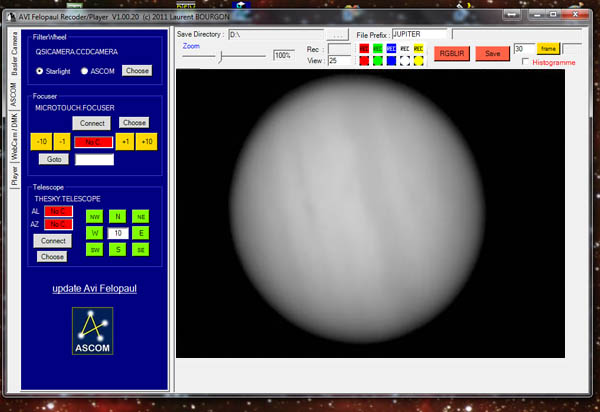

2nd PAGE : ASCOM manage Filterwhell and Focuser
the button's value can be change :
[FILTER]
BUTTON=-10,-1,1,10


3rd PAGE : Capture with Quick Cam or DMK

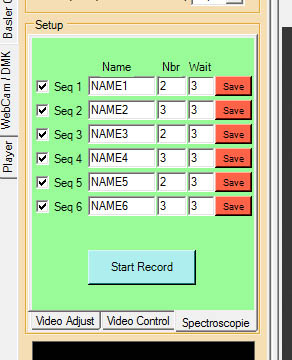

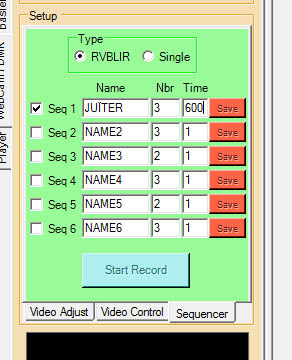

with a special tab for spectroscopy and séquenseur avi


4th PAGE : Player .AVI et .SER
